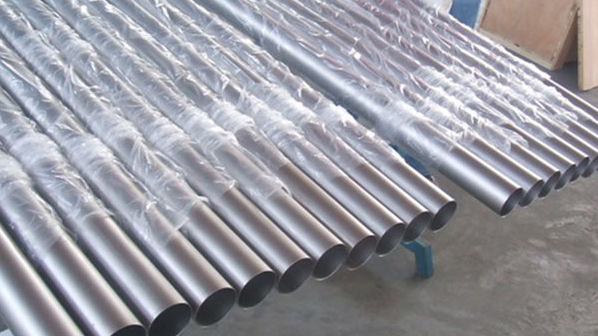

Seamless titanium tube and pipe
Seamless titanium tube to ASTM B338 and pipe to ASTM B861 for condensers, heat exchangers and corrosive process lines. Made to order to your grade, size and length, and delivered to site anywhere in South Africa.
Overview
Titanium is the material of choice where copper alloy or stainless steel tubes fail early: seawater and brackish cooling water, chlorides, oxidising acids and wet chlorine. It combines high specific strength with excellent corrosion resistance, good cryogenic properties, low thermal conductivity and no magnetism.
Our tube and pipe is manufactured by CSM Group, which produces around 3,000 tons of seamless titanium tube and pipe a year. Every order goes through chemical analysis, air pressure, eddy current and ultrasonic testing, plus tensile, flaring and flattening tests to the applicable standard.
Typical applications
- Power station condenser retubing
- Shell-and-tube heat exchangers and coolers
- Acid, chlorine and chemical process lines
- Seawater cooling and desalination
Specification at a glance
| Standard | ASTM/ASME B/SB338 (tube), ASTM B861 (pipe) |
| Grades | 1, 2, 3, 7, 9, 12, 16 |
| Form | Seamless tube and pipe, cut to length |
| Testing | Eddy current, ultrasonic, pressure, mechanical |
| Order quantity | No minimum or maximum |
Technical data

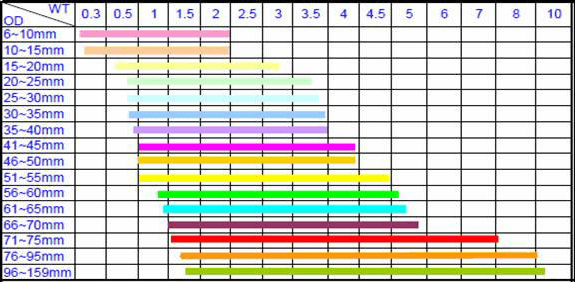

Size range
Chemical composition (%)
| Element | Gr 1 | Gr 2 | Gr 3 | Gr 7 | Gr 9 | Gr 12 |
|---|---|---|---|---|---|---|
| N | ≤0.03 | ≤0.03 | ≤0.05 | ≤0.03 | ≤0.02 | ≤0.03 |
| C | ≤0.10 | ≤0.10 | ≤0.10 | ≤0.10 | ≤0.10 | ≤0.08 |
| H | ≤0.015 | ≤0.015 | ≤0.015 | ≤0.015 | ≤0.015 | ≤0.015 |
| Fe | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.25 | ≤0.3 |
| O | ≤0.18 | ≤0.25 | ≤0.35 | ≤0.25 | ≤0.15 | ≤0.25 |
| Al | – | – | – | – | 2.5–3.5 | – |
| V | – | – | – | – | 2.0–3.0 | – |
| Mo | – | – | – | – | – | 0.2–0.4 |
| Ni | – | – | – | – | – | 0.6–0.9 |
| Pd | – | – | – | 0.12–0.25 | – | – |
| Ti | Balance | Balance | Balance | Balance | Balance | Balance |
Mechanical properties
| Grade | Tensile strength σb ≥ | Yield strength σ0.2 | Elongation δ ≥ |
|---|---|---|---|
| Gr 1 | 240 MPa | 170 MPa | 24% |
| Gr 2 | 345 MPa | 275 MPa | 20% |
| Gr 3 | 450 MPa | 380 MPa | 18% |
| Gr 7 | 345 MPa | 275 MPa | 20% |
| Gr 9A | 620 MPa | 485 MPa | 15% |
| Gr 9B | 860 MPa | 725 MPa | 10% |
| Gr 12 | 483 MPa | 345 MPa | 18% |
Made to order
Manufactured by CSM Group to your grade, standard and dimensions. We do not hold stock, so you get exactly what the job specifies.
Lead time
Typically around a month at the mill depending on quantity, plus freight. Every quote states a lead time you can use in your tender.
Delivered to site
Shipped by sea or air in plywood cases and delivered to your workshop or site anywhere in South Africa.
Need a price for titanium tube?
Send the grade, standard, sizes and quantities and we will come back with a price and lead time.
