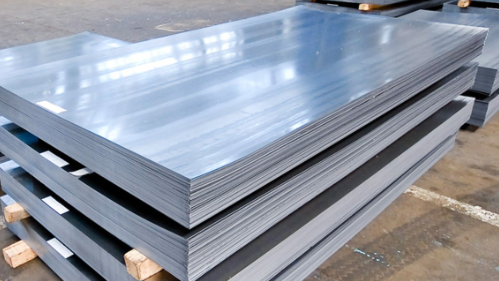

Titanium plate and sheet
Cold-rolled titanium sheet and hot-rolled plate to ASTM B265 for pressure vessels, tube sheets, plate heat exchangers and linings. Made to order and delivered to site anywhere in South Africa.
Overview
Titanium plate gives vessels, tube sheets and heat exchanger plates a high strength-to-weight ratio, strong resistance to corrosive media and efficient heat transfer. It is the answer where chlorides, acids or seawater would attack steel or stainless.
CSM Group controls the whole route from titanium sponge through melting, forging, hot and cold rolling and heat treatment, with an annual capacity of around 5,000 tons, including 1,000 tons of plate for plate heat exchangers.
Typical applications
- Tube sheets and pressure vessel shells
- Plate heat exchanger plates
- Tank, vessel and duct linings
- Chemical reactor and electrolysis components
Specification at a glance
| Standard | ASTM/ASME B/SB265, AMS 4900, AMS 4911, ASTM F67, F136 |
| Grades | 1, 2, 3, 4, 5, 7, 9, 11, 12, 16, 23 |
| Cold-rolled sheet | 0.4–5 mm × up to 1,250 × 3,000 mm |
| Hot-rolled plate | 5–8 mm × up to 3,000 × 7,000 mm |
| Order quantity | No minimum or maximum |
Technical data
Chemical composition (%)
| Grade | N | C | H | Fe | O | Al | V | Mo | Ni | Pd | Ti |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Gr 1 | ≤0.03 | ≤0.08 | ≤0.015 | ≤0.2 | ≤0.18 | – | – | – | – | – | Bal. |
| Gr 2 | ≤0.03 | ≤0.08 | ≤0.015 | ≤0.3 | ≤0.25 | – | – | – | – | – | Bal. |
| Gr 3 | ≤0.05 | ≤0.08 | ≤0.015 | ≤0.3 | ≤0.35 | – | – | – | – | – | Bal. |
| Gr 4 | ≤0.05 | ≤0.08 | ≤0.015 | ≤0.5 | ≤0.40 | – | – | – | – | – | Bal. |
| Gr 5 | ≤0.05 | ≤0.08 | ≤0.015 | ≤0.4 | ≤0.20 | 5.5–6.75 | 3.5–4.5 | – | – | – | Bal. |
| Gr 7 | ≤0.03 | ≤0.08 | ≤0.015 | ≤0.3 | ≤0.25 | – | – | – | – | 0.12–0.25 | Bal. |
| Gr 9 | ≤0.02 | ≤0.08 | ≤0.015 | ≤0.25 | ≤0.15 | 2.5–3.5 | 2.0–3.0 | – | – | – | Bal. |
| Gr 12 | ≤0.03 | ≤0.08 | ≤0.015 | ≤0.3 | ≤0.25 | – | – | 0.2–0.4 | 0.6–0.9 | – | Bal. |
Mechanical properties
| Grade | Tensile strength σb ≥ | Yield strength σ0.2 | Bend test (T < 1.8 mm) | Bend test (1.8–4.75 mm) |
|---|---|---|---|---|
| Gr 1 | 240 MPa | 170–310 MPa | 3T | 4T |
| Gr 2 | 345 MPa | 275–450 MPa | 4T | 5T |
| Gr 3 | 450 MPa | 380–550 MPa | 4T | 5T |
| Gr 4 | 550 MPa | 483–655 MPa | 5T | 6T |
| Gr 5 | 895 MPa | ≥828 MPa | 9T | 10T |
| Gr 7 | 345 MPa | 275–450 MPa | 4T | 5T |
| Gr 9A | 620 MPa | ≥483 MPa | 5T | 5T |
| Gr 9B | 860 MPa | ≥725 MPa | – | – |
| Gr 12 | 483 MPa | ≥345 MPa | 4T | 5T |
Made to order
Rolled to your grade, thickness and plate size. We do not hold stock, so you get exactly what the job specifies.
Lead time
Typically around a month at the mill depending on quantity, plus freight. Every quote states a lead time you can use in your tender.
Delivered to site
Shipped by sea or air in plywood cases and delivered to your workshop or site anywhere in South Africa.
Need a price for titanium plate?
Send the grade, thickness, plate size and quantity and we will come back with a price and lead time.
